Eigen::MINRES< _MatrixType, _UpLo, _Preconditioner > Class Template Reference
Sparse linear algebra » Reference » IterativeLinearSolvers_Module

A minimal residual solver for sparse symmetric problems. More...

#include <MINRES.h>

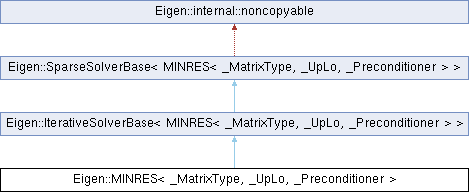

Inheritance diagram for Eigen::MINRES< _MatrixType, _UpLo, _Preconditioner >:
Eigen::IterativeSolverBase< MINRES< _MatrixType, _UpLo, _Preconditioner > > Eigen::SparseSolverBase< Derived > Eigen::internal::noncopyable

Public Types

enum  { UpLo = _UpLo }

typedef _MatrixType MatrixType

typedef MatrixType::Scalar Scalar

typedef MatrixType::RealScalar RealScalar

typedef _Preconditioner Preconditioner

- Public Types inherited from Eigen::IterativeSolverBase< MINRES< _MatrixType, _UpLo, _Preconditioner > >
enum

typedef internal::traits< MINRES< _MatrixType, _UpLo, _Preconditioner > >::MatrixType MatrixType

typedef internal::traits< MINRES< _MatrixType, _UpLo, _Preconditioner > >::Preconditioner Preconditioner

typedef MatrixType::Scalar Scalar

typedef MatrixType::StorageIndex StorageIndex

typedef MatrixType::RealScalar RealScalar


Public Member Functions

 MINRES ()

template<typename MatrixDerived >
 MINRES (const EigenBase< MatrixDerived > &A)

 ~MINRES ()

template<typename Rhs , typename Dest >
void _solve_vector_with_guess_impl (const Rhs &b, Dest &x) const

template<typename Rhs , typename Dest >
void _solve_impl (const Rhs &b, Dest &x) const

- Public Member Functions inherited from Eigen::IterativeSolverBase< MINRES< _MatrixType, _UpLo, _Preconditioner > >
 IterativeSolverBase ()

 IterativeSolverBase (const EigenBase< MatrixDerived > &A)

 ~IterativeSolverBase ()

MINRES< _MatrixType, _UpLo, _Preconditioner > & analyzePattern (const EigenBase< MatrixDerived > &A)

MINRES< _MatrixType, _UpLo, _Preconditioner > & factorize (const EigenBase< MatrixDerived > &A)

MINRES< _MatrixType, _UpLo, _Preconditioner > & compute (const EigenBase< MatrixDerived > &A)

EIGEN_CONSTEXPR Index rows () const EIGEN_NOEXCEPT

EIGEN_CONSTEXPR Index cols () const EIGEN_NOEXCEPT

RealScalar tolerance () const

MINRES< _MatrixType, _UpLo, _Preconditioner > & setTolerance (const RealScalar &tolerance)

Preconditioner & preconditioner ()

const Preconditioner & preconditioner () const

Index maxIterations () const

MINRES< _MatrixType, _UpLo, _Preconditioner > & setMaxIterations (Index maxIters)

Index iterations () const

RealScalar error () const

const SolveWithGuess< MINRES< _MatrixType, _UpLo, _Preconditioner >, Rhs, Guess > solveWithGuess (const MatrixBase< Rhs > &b, const Guess &x0) const

ComputationInfo info () const

void _solve_with_guess_impl (const Rhs &b, SparseMatrixBase< DestDerived > &aDest) const

internal::enable_if< Rhs::ColsAtCompileTime!=1 &&DestDerived::ColsAtCompileTime!=1 >::type _solve_with_guess_impl (const Rhs &b, MatrixBase< DestDerived > &aDest) const

internal::enable_if< Rhs::ColsAtCompileTime==1||DestDerived::ColsAtCompileTime==1 >::type _solve_with_guess_impl (const Rhs &b, MatrixBase< DestDerived > &dest) const

void _solve_impl (const Rhs &b, Dest &x) const

MINRES< _MatrixType, _UpLo, _Preconditioner > & derived ()

const MINRES< _MatrixType, _UpLo, _Preconditioner > & derived () const

- Public Member Functions inherited from Eigen::SparseSolverBase< Derived >
 SparseSolverBase ()

 ~SparseSolverBase ()

Derived & derived ()

const Derived & derived () const

template<typename Rhs >
const Solve< Derived, Rhs > solve (const MatrixBase< Rhs > &b) const

template<typename Rhs >
const Solve< Derived, Rhs > solve (const SparseMatrixBase< Rhs > &b) const

template<typename Rhs , typename Dest >
void _solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const


Additional Inherited Members

- Protected Types inherited from Eigen::IterativeSolverBase< MINRES< _MatrixType, _UpLo, _Preconditioner > >
typedef SparseSolverBase< MINRES< _MatrixType, _UpLo, _Preconditioner > > Base

typedef internal::generic_matrix_wrapper< MatrixType > MatrixWrapper

typedef MatrixWrapper::ActualMatrixType ActualMatrixType

- Protected Member Functions inherited from Eigen::IterativeSolverBase< MINRES< _MatrixType, _UpLo, _Preconditioner > >
void init ()

const ActualMatrixType & matrix () const

void grab (const InputType &A)

- Protected Attributes inherited from Eigen::IterativeSolverBase< MINRES< _MatrixType, _UpLo, _Preconditioner > >
MatrixWrapper m_matrixWrapper

Preconditioner m_preconditioner

Index m_maxIterations

RealScalar m_tolerance

RealScalar m_error

Index m_iterations

ComputationInfo m_info

bool m_analysisIsOk

bool m_factorizationIsOk

bool m_isInitialized

- Protected Attributes inherited from Eigen::SparseSolverBase< Derived >
bool m_isInitialized


Detailed Description

template<typename _MatrixType, int _UpLo, typename _Preconditioner>
class Eigen::MINRES< _MatrixType, _UpLo, _Preconditioner >

A minimal residual solver for sparse symmetric problems.

This class allows to solve for A.x = b sparse linear problems using the MINRES algorithm of Paige and Saunders (1975). The sparse matrix A must be symmetric (possibly indefinite). The vectors x and b can be either dense or sparse.

Template Parameters
_MatrixTypethe type of the sparse matrix A, can be a dense or a sparse matrix.
_UpLothe triangular part that will be used for the computations. It can be Lower, Upper, or Lower|Upper in which the full matrix entries will be considered. Default is Lower.
_Preconditionerthe type of the preconditioner. Default is DiagonalPreconditioner

The maximal number of iterations and tolerance value can be controlled via the setMaxIterations() and setTolerance() methods. The defaults are the size of the problem for the maximal number of iterations and NumTraits<Scalar>::epsilon() for the tolerance.

This class can be used as the direct solver classes. Here is a typical usage example:

int n = 10000;
VectorXd x(n), b(n);
SparseMatrix<double> A(n,n);
// fill A and b
MINRES<SparseMatrix<double> > mr;
mr.compute(A);
x = mr.solve(b);
std::cout << "#iterations: " << mr.iterations() << std::endl;
std::cout << "estimated error: " << mr.error() << std::endl;
// update b, and solve again
x = mr.solve(b);
n
int n
Definition BiCGSTAB_simple.cpp:1
b
Scalar * b
Definition benchVecAdd.cpp:17
A
Matrix< SCALARA, Dynamic, Dynamic, opt_A > A
Definition bench_gemm.cpp:48
Eigen::IterativeSolverBase::error
RealScalar error() const
Definition IterativeSolverBase.h:305
Eigen::IterativeSolverBase::compute
Derived & compute(const EigenBase< MatrixDerived > &A)
Definition IterativeSolverBase.h:238
Eigen::IterativeSolverBase::iterations
Index iterations() const
Definition IterativeSolverBase.h:296
Eigen::MINRES
A minimal residual solver for sparse symmetric problems.
Definition MINRES.h:196
Eigen::Matrix
The matrix class, also used for vectors and row-vectors.
Definition Matrix.h:180
Eigen::SparseMatrix
A versatible sparse matrix representation.
Definition SparseMatrix.h:98
Eigen::SparseSolverBase::solve
const Solve< Derived, Rhs > solve(const MatrixBase< Rhs > &b) const
Definition SparseSolverBase.h:88
x
set noclip points set clip one set noclip two set bar set border lt lw set xdata set ydata set zdata set x2data set y2data set boxwidth set dummy x
Definition gnuplot_common_settings.hh:12

By default the iterations start with x=0 as an initial guess of the solution. One can control the start using the solveWithGuess() method.

MINRES can also be used in a matrix-free context, see the following example .

See also
class ConjugateGradient, BiCGSTAB, SimplicialCholesky, DiagonalPreconditioner, IdentityPreconditioner

Member Typedef Documentation

◆ MatrixType

template<typename _MatrixType , int _UpLo, typename _Preconditioner >
typedef _MatrixType Eigen::MINRES< _MatrixType, _UpLo, _Preconditioner >::MatrixType

◆ Preconditioner

template<typename _MatrixType , int _UpLo, typename _Preconditioner >
typedef _Preconditioner Eigen::MINRES< _MatrixType, _UpLo, _Preconditioner >::Preconditioner

◆ RealScalar

template<typename _MatrixType , int _UpLo, typename _Preconditioner >
typedef MatrixType::RealScalar Eigen::MINRES< _MatrixType, _UpLo, _Preconditioner >::RealScalar

◆ Scalar

template<typename _MatrixType , int _UpLo, typename _Preconditioner >
typedef MatrixType::Scalar Eigen::MINRES< _MatrixType, _UpLo, _Preconditioner >::Scalar

Member Enumeration Documentation

◆ anonymous enum

template<typename _MatrixType , int _UpLo, typename _Preconditioner >
anonymous enum
Enumerator
UpLo

Constructor & Destructor Documentation

◆ MINRES() [1/2]

template<typename _MatrixType , int _UpLo, typename _Preconditioner >
Eigen::MINRES< _MatrixType, _UpLo, _Preconditioner >::MINRES ( )
inline

Default constructor.

◆ MINRES() [2/2]

template<typename _MatrixType , int _UpLo, typename _Preconditioner >
template<typename MatrixDerived >
Eigen::MINRES< _MatrixType, _UpLo, _Preconditioner >::MINRES ( const EigenBase< MatrixDerived > &  A)
inlineexplicit

Initialize the solver with matrix A for further Ax=b solving.

This constructor is a shortcut for the default constructor followed by a call to compute().

Warning
this class stores a reference to the matrix A as well as some precomputed values that depend on it. Therefore, if A is changed this class becomes invalid. Call compute() to update it with the new matrix A, or modify a copy of A.

◆ ~MINRES()

template<typename _MatrixType , int _UpLo, typename _Preconditioner >
Eigen::MINRES< _MatrixType, _UpLo, _Preconditioner >::~MINRES ( )
inline

Destructor.

Member Function Documentation

◆ _solve_impl()

template<typename _MatrixType , int _UpLo, typename _Preconditioner >
template<typename Rhs , typename Dest >
void Eigen::IterativeSolverBase< Derived >::_solve_impl ( const Rhs &  b,
Dest &  x
) const
inline

◆ _solve_vector_with_guess_impl()

template<typename _MatrixType , int _UpLo, typename _Preconditioner >
template<typename Rhs , typename Dest >
void Eigen::MINRES< _MatrixType, _UpLo, _Preconditioner >::_solve_vector_with_guess_impl ( const Rhs &  b,
Dest &  x
) const
inline
The documentation for this class was generated from the following file:
