Eigen::UmfPackLU< _MatrixType > Class Template Reference

A sparse LU factorization and solver based on UmfPack. More...

#include <UmfPackSupport.h>

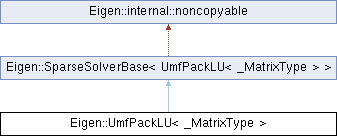

Inheritance diagram for Eigen::UmfPackLU< _MatrixType >:
Eigen::SparseSolverBase< UmfPackLU< _MatrixType > > Eigen::internal::noncopyable

Public Types

enum  { ColsAtCompileTime = MatrixType::ColsAtCompileTime , MaxColsAtCompileTime = MatrixType::MaxColsAtCompileTime }

typedef _MatrixType MatrixType

typedef MatrixType::Scalar Scalar

typedef MatrixType::RealScalar RealScalar

typedef MatrixType::StorageIndex StorageIndex

typedef Matrix< Scalar, Dynamic, 1 > Vector

typedef Matrix< int, 1, MatrixType::ColsAtCompileTime > IntRowVectorType

typedef Matrix< int, MatrixType::RowsAtCompileTime, 1 > IntColVectorType

typedef SparseMatrix< Scalar > LUMatrixType

typedef SparseMatrix< Scalar, ColMajor, StorageIndex > UmfpackMatrixType

typedef Ref< const UmfpackMatrixType, StandardCompressedFormat > UmfpackMatrixRef

typedef Array< double, UMFPACK_CONTROL, 1 > UmfpackControl

typedef Array< double, UMFPACK_INFO, 1 > UmfpackInfo


Public Member Functions

 UmfPackLU ()

template<typename InputMatrixType >
 UmfPackLU (const InputMatrixType &matrix)

 ~UmfPackLU ()

Index rows () const

Index cols () const

ComputationInfo info () const
 Reports whether previous computation was successful.

const LUMatrixType & matrixL () const

const LUMatrixType & matrixU () const

const IntColVectorType & permutationP () const

const IntRowVectorType & permutationQ () const

template<typename InputMatrixType >
void compute (const InputMatrixType &matrix)

template<typename InputMatrixType >
void analyzePattern (const InputMatrixType &matrix)

int umfpackFactorizeReturncode () const

const UmfpackControl & umfpackControl () const

UmfpackControl & umfpackControl ()

template<typename InputMatrixType >
void factorize (const InputMatrixType &matrix)

void printUmfpackControl ()

void printUmfpackInfo ()

void printUmfpackStatus ()

template<typename BDerived , typename XDerived >
bool _solve_impl (const MatrixBase< BDerived > &b, MatrixBase< XDerived > &x) const

Scalar determinant () const

void extractData () const

- Public Member Functions inherited from Eigen::SparseSolverBase< UmfPackLU< _MatrixType > >
 SparseSolverBase ()

 ~SparseSolverBase ()

UmfPackLU< _MatrixType > & derived ()

const UmfPackLU< _MatrixType > & derived () const

const Solve< UmfPackLU< _MatrixType >, Rhs > solve (const MatrixBase< Rhs > &b) const

const Solve< UmfPackLU< _MatrixType >, Rhs > solve (const SparseMatrixBase< Rhs > &b) const

void _solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const


Protected Types

typedef SparseSolverBase< UmfPackLU< _MatrixType > > Base


Protected Member Functions

void init ()

void analyzePattern_impl ()

void factorize_impl ()

template<typename MatrixDerived >
void grab (const EigenBase< MatrixDerived > &A)

void grab (const UmfpackMatrixRef &A)


Protected Attributes

LUMatrixType m_l

StorageIndex m_fact_errorCode

UmfpackControl m_control

UmfpackInfo m_umfpackInfo

LUMatrixType m_u

IntColVectorType m_p

IntRowVectorType m_q

UmfpackMatrixType m_dummy

UmfpackMatrixRef mp_matrix

void * m_numeric

void * m_symbolic

ComputationInfo m_info

int m_factorizationIsOk

int m_analysisIsOk

bool m_extractedDataAreDirty

- Protected Attributes inherited from Eigen::SparseSolverBase< UmfPackLU< _MatrixType > >
bool m_isInitialized


Detailed Description

template<typename _MatrixType>
class Eigen::UmfPackLU< _MatrixType >

A sparse LU factorization and solver based on UmfPack.

This class allows to solve for A.X = B sparse linear problems via a LU factorization using the UmfPack library. The sparse matrix A must be squared and full rank. The vectors or matrices X and B can be either dense or sparse.

Warning
The input matrix A should be in a compressed and column-major form. Otherwise an expensive copy will be made. You can call the inexpensive makeCompressed() to get a compressed matrix.
Template Parameters
_MatrixTypethe type of the sparse matrix A, it must be a SparseMatrix<>

\implsparsesolverconcept

See also
Sparse solver concept, class SparseLU

Member Typedef Documentation

◆ Base

template<typename _MatrixType >
typedef SparseSolverBase<UmfPackLU<_MatrixType> > Eigen::UmfPackLU< _MatrixType >::Base
protected

◆ IntColVectorType

template<typename _MatrixType >
typedef Matrix<int, MatrixType::RowsAtCompileTime, 1> Eigen::UmfPackLU< _MatrixType >::IntColVectorType

◆ IntRowVectorType

template<typename _MatrixType >
typedef Matrix<int, 1, MatrixType::ColsAtCompileTime> Eigen::UmfPackLU< _MatrixType >::IntRowVectorType

◆ LUMatrixType

template<typename _MatrixType >
typedef SparseMatrix<Scalar> Eigen::UmfPackLU< _MatrixType >::LUMatrixType

◆ MatrixType

template<typename _MatrixType >
typedef _MatrixType Eigen::UmfPackLU< _MatrixType >::MatrixType

◆ RealScalar

template<typename _MatrixType >
typedef MatrixType::RealScalar Eigen::UmfPackLU< _MatrixType >::RealScalar

◆ Scalar

template<typename _MatrixType >
typedef MatrixType::Scalar Eigen::UmfPackLU< _MatrixType >::Scalar

◆ StorageIndex

template<typename _MatrixType >
typedef MatrixType::StorageIndex Eigen::UmfPackLU< _MatrixType >::StorageIndex

◆ UmfpackControl

template<typename _MatrixType >
typedef Array<double, UMFPACK_CONTROL, 1> Eigen::UmfPackLU< _MatrixType >::UmfpackControl

◆ UmfpackInfo

template<typename _MatrixType >
typedef Array<double, UMFPACK_INFO, 1> Eigen::UmfPackLU< _MatrixType >::UmfpackInfo

◆ UmfpackMatrixRef

template<typename _MatrixType >
typedef Ref<const UmfpackMatrixType, StandardCompressedFormat> Eigen::UmfPackLU< _MatrixType >::UmfpackMatrixRef

◆ UmfpackMatrixType

template<typename _MatrixType >
typedef SparseMatrix<Scalar,ColMajor,StorageIndex> Eigen::UmfPackLU< _MatrixType >::UmfpackMatrixType

◆ Vector

template<typename _MatrixType >
typedef Matrix<Scalar,Dynamic,1> Eigen::UmfPackLU< _MatrixType >::Vector

Member Enumeration Documentation

◆ anonymous enum

template<typename _MatrixType >
anonymous enum
Enumerator
ColsAtCompileTime
MaxColsAtCompileTime

Constructor & Destructor Documentation

◆ UmfPackLU() [1/2]

template<typename _MatrixType >
Eigen::UmfPackLU< _MatrixType >::UmfPackLU ( )
inline

◆ UmfPackLU() [2/2]

template<typename _MatrixType >
template<typename InputMatrixType >
Eigen::UmfPackLU< _MatrixType >::UmfPackLU ( const InputMatrixType &  matrix)
inlineexplicit

◆ ~UmfPackLU()

template<typename _MatrixType >
Eigen::UmfPackLU< _MatrixType >::~UmfPackLU ( )
inline

Member Function Documentation

◆ _solve_impl()

template<typename MatrixType >
template<typename BDerived , typename XDerived >
bool Eigen::UmfPackLU< MatrixType >::_solve_impl ( const MatrixBase< BDerived > &  b,
MatrixBase< XDerived > &  x
) const

◆ analyzePattern()

template<typename _MatrixType >
template<typename InputMatrixType >
void Eigen::UmfPackLU< _MatrixType >::analyzePattern ( const InputMatrixType &  matrix)
inline

Performs a symbolic decomposition on the sparcity of matrix.

This function is particularly useful when solving for several problems having the same structure.

See also
factorize(), compute()

◆ analyzePattern_impl()

template<typename _MatrixType >
void Eigen::UmfPackLU< _MatrixType >::analyzePattern_impl ( )
inlineprotected

◆ cols()

template<typename _MatrixType >
Index Eigen::UmfPackLU< _MatrixType >::cols ( ) const
inline

◆ compute()

template<typename _MatrixType >
template<typename InputMatrixType >
void Eigen::UmfPackLU< _MatrixType >::compute ( const InputMatrixType &  matrix)
inline

Computes the sparse Cholesky decomposition of matrix Note that the matrix should be column-major, and in compressed format for best performance.

See also
SparseMatrix::makeCompressed().

◆ determinant()

template<typename MatrixType >
UmfPackLU< MatrixType >::Scalar Eigen::UmfPackLU< MatrixType >::determinant ( ) const

◆ extractData()

template<typename MatrixType >
void Eigen::UmfPackLU< MatrixType >::extractData ( ) const

◆ factorize()

template<typename _MatrixType >
template<typename InputMatrixType >
void Eigen::UmfPackLU< _MatrixType >::factorize ( const InputMatrixType &  matrix)
inline

Performs a numeric decomposition of matrix

The given matrix must has the same sparcity than the matrix on which the pattern anylysis has been performed.

See also
analyzePattern(), compute()

◆ factorize_impl()

template<typename _MatrixType >
void Eigen::UmfPackLU< _MatrixType >::factorize_impl ( )
inlineprotected

◆ grab() [1/2]

template<typename _MatrixType >
template<typename MatrixDerived >
void Eigen::UmfPackLU< _MatrixType >::grab ( const EigenBase< MatrixDerived > &  A)
inlineprotected

◆ grab() [2/2]

template<typename _MatrixType >
void Eigen::UmfPackLU< _MatrixType >::grab ( const UmfpackMatrixRef &  A)
inlineprotected

◆ info()

template<typename _MatrixType >
ComputationInfo Eigen::UmfPackLU< _MatrixType >::info ( ) const
inline

Reports whether previous computation was successful.

Returns
Success if computation was successful, NumericalIssue if the matrix.appears to be negative.

◆ init()

template<typename _MatrixType >
void Eigen::UmfPackLU< _MatrixType >::init ( )
inlineprotected

◆ matrixL()

template<typename _MatrixType >
const LUMatrixType & Eigen::UmfPackLU< _MatrixType >::matrixL ( ) const
inline

◆ matrixU()

template<typename _MatrixType >
const LUMatrixType & Eigen::UmfPackLU< _MatrixType >::matrixU ( ) const
inline

◆ permutationP()

template<typename _MatrixType >
const IntColVectorType & Eigen::UmfPackLU< _MatrixType >::permutationP ( ) const
inline

◆ permutationQ()

template<typename _MatrixType >
const IntRowVectorType & Eigen::UmfPackLU< _MatrixType >::permutationQ ( ) const
inline

◆ printUmfpackControl()

template<typename _MatrixType >
void Eigen::UmfPackLU< _MatrixType >::printUmfpackControl ( )
inline

Prints the current UmfPack control settings.

See also
umfpackControl()

◆ printUmfpackInfo()

template<typename _MatrixType >
void Eigen::UmfPackLU< _MatrixType >::printUmfpackInfo ( )
inline

Prints statistics collected by UmfPack.

See also
analyzePattern(), compute()

◆ printUmfpackStatus()

template<typename _MatrixType >
void Eigen::UmfPackLU< _MatrixType >::printUmfpackStatus ( )
inline

Prints the status of the previous factorization operation performed by UmfPack (symbolic or numerical factorization).

See also
analyzePattern(), compute()

◆ rows()

template<typename _MatrixType >
Index Eigen::UmfPackLU< _MatrixType >::rows ( ) const
inline

◆ umfpackControl() [1/2]

template<typename _MatrixType >
UmfpackControl & Eigen::UmfPackLU< _MatrixType >::umfpackControl ( )
inline

Provides access to the control settings array used by UmfPack.

If this array contains NaN's, the default values are used.

See UMFPACK documentation for details.

◆ umfpackControl() [2/2]

template<typename _MatrixType >
const UmfpackControl & Eigen::UmfPackLU< _MatrixType >::umfpackControl ( ) const
inline

Provides access to the control settings array used by UmfPack.

If this array contains NaN's, the default values are used.

See UMFPACK documentation for details.

◆ umfpackFactorizeReturncode()

template<typename _MatrixType >
int Eigen::UmfPackLU< _MatrixType >::umfpackFactorizeReturncode ( ) const
inline

Provides the return status code returned by UmfPack during the numeric factorization.

See also
factorize(), compute()

Member Data Documentation

◆ m_analysisIsOk

template<typename _MatrixType >
int Eigen::UmfPackLU< _MatrixType >::m_analysisIsOk
protected

◆ m_control

template<typename _MatrixType >
UmfpackControl Eigen::UmfPackLU< _MatrixType >::m_control
protected

◆ m_dummy

template<typename _MatrixType >
UmfpackMatrixType Eigen::UmfPackLU< _MatrixType >::m_dummy
protected

◆ m_extractedDataAreDirty

template<typename _MatrixType >
bool Eigen::UmfPackLU< _MatrixType >::m_extractedDataAreDirty
mutableprotected

◆ m_fact_errorCode

template<typename _MatrixType >
StorageIndex Eigen::UmfPackLU< _MatrixType >::m_fact_errorCode
protected

◆ m_factorizationIsOk

template<typename _MatrixType >
int Eigen::UmfPackLU< _MatrixType >::m_factorizationIsOk
protected

◆ m_info

template<typename _MatrixType >
ComputationInfo Eigen::UmfPackLU< _MatrixType >::m_info
mutableprotected

◆ m_l

template<typename _MatrixType >
LUMatrixType Eigen::UmfPackLU< _MatrixType >::m_l
mutableprotected

◆ m_numeric

template<typename _MatrixType >
void* Eigen::UmfPackLU< _MatrixType >::m_numeric
protected

◆ m_p

template<typename _MatrixType >
IntColVectorType Eigen::UmfPackLU< _MatrixType >::m_p
mutableprotected

◆ m_q

template<typename _MatrixType >
IntRowVectorType Eigen::UmfPackLU< _MatrixType >::m_q
mutableprotected

◆ m_symbolic

template<typename _MatrixType >
void* Eigen::UmfPackLU< _MatrixType >::m_symbolic
protected

◆ m_u

template<typename _MatrixType >
LUMatrixType Eigen::UmfPackLU< _MatrixType >::m_u
mutableprotected

◆ m_umfpackInfo

template<typename _MatrixType >
UmfpackInfo Eigen::UmfPackLU< _MatrixType >::m_umfpackInfo
mutableprotected

◆ mp_matrix

template<typename _MatrixType >
UmfpackMatrixRef Eigen::UmfPackLU< _MatrixType >::mp_matrix
protected
The documentation for this class was generated from the following file:
Generated by doxygen 1.9.8
