Eigen::Quaternion< _Scalar, _Options > Class Template Reference
Geometry » Reference » Geometry_Module

The quaternion class used to represent 3D orientations and rotations. More...

#include <Quaternion.h>

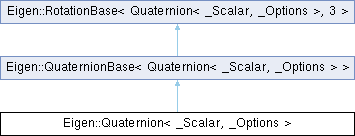

Inheritance diagram for Eigen::Quaternion< _Scalar, _Options >:
Eigen::QuaternionBase< Quaternion< _Scalar, _Options > > Eigen::RotationBase< Derived, _Dim >

Public Types

enum

typedef QuaternionBase< Quaternion< _Scalar, _Options > > Base

typedef _Scalar Scalar

typedef internal::traits< Quaternion >::Coefficients Coefficients

typedef Base::AngleAxisType AngleAxisType

- Public Types inherited from Eigen::QuaternionBase< Quaternion< _Scalar, _Options > >
enum

typedef RotationBase< Quaternion< _Scalar, _Options >, 3 > Base

typedef internal::traits< Quaternion< _Scalar, _Options > >::Scalar Scalar

typedef NumTraits< Scalar >::Real RealScalar

typedef internal::traits< Quaternion< _Scalar, _Options > >::Coefficients Coefficients

typedef Coefficients::CoeffReturnType CoeffReturnType

typedef internal::conditional< bool(internal::traits< Quaternion< _Scalar, _Options > >::Flags &LvalueBit), Scalar &, CoeffReturnType >::type NonConstCoeffReturnType

typedef Matrix< Scalar, 3, 1 > Vector3

typedef Matrix< Scalar, 3, 3 > Matrix3

typedef AngleAxis< Scalar > AngleAxisType

- Public Types inherited from Eigen::RotationBase< Derived, _Dim >
enum  { Dim = _Dim }

typedef internal::traits< Derived >::Scalar Scalar

typedef Matrix< Scalar, Dim, Dim > RotationMatrixType

typedef Matrix< Scalar, Dim, 1 > VectorType


Public Member Functions

EIGEN_DEVICE_FUNC Quaternion ()

EIGEN_DEVICE_FUNC Quaternion (const Scalar &w, const Scalar &x, const Scalar &y, const Scalar &z)

EIGEN_DEVICE_FUNC Quaternion (const Scalar *data)

template<class Derived >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Quaternion (const QuaternionBase< Derived > &other)

EIGEN_DEVICE_FUNC Quaternion (const AngleAxisType &aa)

template<typename Derived >
EIGEN_DEVICE_FUNC Quaternion (const MatrixBase< Derived > &other)

template<typename OtherScalar , int OtherOptions>
EIGEN_DEVICE_FUNC Quaternion (const Quaternion< OtherScalar, OtherOptions > &other)

EIGEN_DEVICE_FUNC Coefficients & coeffs ()

EIGEN_DEVICE_FUNC const Coefficients & coeffs () const

template<typename Derived1 , typename Derived2 >
EIGEN_DEVICE_FUNC Quaternion< Scalar, Options > FromTwoVectors (const MatrixBase< Derived1 > &a, const MatrixBase< Derived2 > &b)

- Public Member Functions inherited from Eigen::QuaternionBase< Quaternion< _Scalar, _Options > >
EIGEN_DEVICE_FUNC CoeffReturnType x () const

EIGEN_DEVICE_FUNC NonConstCoeffReturnType x ()

EIGEN_DEVICE_FUNC CoeffReturnType y () const

EIGEN_DEVICE_FUNC NonConstCoeffReturnType y ()

EIGEN_DEVICE_FUNC CoeffReturnType z () const

EIGEN_DEVICE_FUNC NonConstCoeffReturnType z ()

EIGEN_DEVICE_FUNC CoeffReturnType w () const

EIGEN_DEVICE_FUNC NonConstCoeffReturnType w ()

EIGEN_DEVICE_FUNC const VectorBlock< const Coefficients, 3 > vec () const

EIGEN_DEVICE_FUNC VectorBlock< Coefficients, 3 > vec ()

EIGEN_DEVICE_FUNC const internal::traits< Quaternion< _Scalar, _Options > >::Coefficients & coeffs () const

EIGEN_DEVICE_FUNC internal::traits< Quaternion< _Scalar, _Options > >::Coefficients & coeffs ()

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE QuaternionBase< Quaternion< _Scalar, _Options > > & operator= (const QuaternionBase< Quaternion< _Scalar, _Options > > &other)

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Quaternion< _Scalar, _Options > & operator= (const QuaternionBase< OtherDerived > &other)

EIGEN_DEVICE_FUNC Quaternion< _Scalar, _Options > & operator= (const AngleAxisType &aa)

EIGEN_DEVICE_FUNC Quaternion< _Scalar, _Options > & operator= (const MatrixBase< OtherDerived > &m)

EIGEN_DEVICE_FUNC Quaternion< _Scalar, _Options > & operator= (const MatrixBase< MatrixDerived > &xpr)

EIGEN_DEVICE_FUNC QuaternionBase & setIdentity ()

EIGEN_DEVICE_FUNC Scalar squaredNorm () const

EIGEN_DEVICE_FUNC Scalar norm () const

EIGEN_DEVICE_FUNC void normalize ()

EIGEN_DEVICE_FUNC Quaternion< Scalar > normalized () const

EIGEN_DEVICE_FUNC Scalar dot (const QuaternionBase< OtherDerived > &other) const

EIGEN_DEVICE_FUNC Scalar angularDistance (const QuaternionBase< OtherDerived > &other) const

EIGEN_DEVICE_FUNC internal::traits< Quaternion< _Scalar, _Options > >::Scalar angularDistance (const QuaternionBase< OtherDerived > &other) const

EIGEN_DEVICE_FUNC Matrix3 toRotationMatrix () const

EIGEN_DEVICE_FUNC Quaternion< _Scalar, _Options > & setFromTwoVectors (const MatrixBase< Derived1 > &a, const MatrixBase< Derived2 > &b)

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Quaternion< Scalar > operator* (const QuaternionBase< OtherDerived > &q) const

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Quaternion< typename internal::traits< Quaternion< _Scalar, _Options > >::Scalar > operator* (const QuaternionBase< OtherDerived > &other) const

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Quaternion< _Scalar, _Options > & operator*= (const QuaternionBase< OtherDerived > &q)

EIGEN_DEVICE_FUNC Quaternion< Scalar > inverse () const

EIGEN_DEVICE_FUNC Quaternion< Scalar > conjugate () const

EIGEN_DEVICE_FUNC Quaternion< Scalar > slerp (const Scalar &t, const QuaternionBase< OtherDerived > &other) const

EIGEN_DEVICE_FUNC Quaternion< typename internal::traits< Quaternion< _Scalar, _Options > >::Scalar > slerp (const Scalar &t, const QuaternionBase< OtherDerived > &other) const

EIGEN_DEVICE_FUNC bool operator== (const QuaternionBase< OtherDerived > &other) const

EIGEN_DEVICE_FUNC bool operator!= (const QuaternionBase< OtherDerived > &other) const

EIGEN_DEVICE_FUNC bool isApprox (const QuaternionBase< OtherDerived > &other, const RealScalar &prec=NumTraits< Scalar >::dummy_precision()) const

EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Vector3 _transformVector (const Vector3 &v) const

EIGEN_DEVICE_FUNC internal::enable_if< internal::is_same< Scalar, NewScalarType >::value, constDerived & >::type cast () const

EIGEN_DEVICE_FUNC internal::enable_if<!internal::is_same< Scalar, NewScalarType >::value, Quaternion< NewScalarType > >::type cast () const

- Public Member Functions inherited from Eigen::RotationBase< Derived, _Dim >
EIGEN_DEVICE_FUNC const Derived & derived () const

EIGEN_DEVICE_FUNC Derived & derived ()

EIGEN_DEVICE_FUNC RotationMatrixType toRotationMatrix () const

EIGEN_DEVICE_FUNC RotationMatrixType matrix () const

EIGEN_DEVICE_FUNC Derived inverse () const

EIGEN_DEVICE_FUNC Transform< Scalar, Dim, Isometry > operator* (const Translation< Scalar, Dim > &t) const

EIGEN_DEVICE_FUNC RotationMatrixType operator* (const UniformScaling< Scalar > &s) const

template<typename OtherDerived >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE internal::rotation_base_generic_product_selector< Derived, OtherDerived, OtherDerived::IsVectorAtCompileTime >::ReturnType operator* (const EigenBase< OtherDerived > &e) const

template<int Mode, int Options>
EIGEN_DEVICE_FUNC Transform< Scalar, Dim, Mode > operator* (const Transform< Scalar, Dim, Mode, Options > &t) const

template<typename OtherVectorType >
EIGEN_DEVICE_FUNC VectorType _transformVector (const OtherVectorType &v) const


Static Public Member Functions

static EIGEN_DEVICE_FUNC Quaternion UnitRandom ()

template<typename Derived1 , typename Derived2 >
static EIGEN_DEVICE_FUNC Quaternion FromTwoVectors (const MatrixBase< Derived1 > &a, const MatrixBase< Derived2 > &b)

- Static Public Member Functions inherited from Eigen::QuaternionBase< Quaternion< _Scalar, _Options > >
static EIGEN_DEVICE_FUNC Quaternion< Scalar > Identity ()


Static Protected Member Functions

static EIGEN_STRONG_INLINE void _check_template_params ()


Protected Attributes

Coefficients m_coeffs


Detailed Description

template<typename _Scalar, int _Options>
class Eigen::Quaternion< _Scalar, _Options >

The quaternion class used to represent 3D orientations and rotations.

\geometry_module

Template Parameters
_Scalarthe scalar type, i.e., the type of the coefficients
_Optionscontrols the memory alignment of the coefficients. Can be # AutoAlign or # DontAlign. Default is AutoAlign.

This class represents a quaternion $ w+xi+yj+zk $ that is a convenient representation of orientations and rotations of objects in three dimensions. Compared to other representations like Euler angles or 3x3 matrices, quaternions offer the following advantages:

The following two typedefs are provided for convenience:

Warning
Operations interpreting the quaternion as rotation have undefined behavior if the quaternion is not normalized.
See also
class AngleAxis, class Transform

Member Typedef Documentation

◆ AngleAxisType

template<typename _Scalar , int _Options>
typedef Base::AngleAxisType Eigen::Quaternion< _Scalar, _Options >::AngleAxisType

◆ Base

template<typename _Scalar , int _Options>
typedef QuaternionBase<Quaternion<_Scalar,_Options> > Eigen::Quaternion< _Scalar, _Options >::Base

◆ Coefficients

template<typename _Scalar , int _Options>
typedef internal::traits<Quaternion>::Coefficients Eigen::Quaternion< _Scalar, _Options >::Coefficients

◆ Scalar

template<typename _Scalar , int _Options>
typedef _Scalar Eigen::Quaternion< _Scalar, _Options >::Scalar

Member Enumeration Documentation

◆ anonymous enum

template<typename _Scalar , int _Options>
anonymous enum

Constructor & Destructor Documentation

◆ Quaternion() [1/7]

template<typename _Scalar , int _Options>
EIGEN_DEVICE_FUNC Eigen::Quaternion< _Scalar, _Options >::Quaternion ( )
inline

Default constructor leaving the quaternion uninitialized.

◆ Quaternion() [2/7]

template<typename _Scalar , int _Options>
EIGEN_DEVICE_FUNC Eigen::Quaternion< _Scalar, _Options >::Quaternion ( const Scalar &  w,
const Scalar &  x,
const Scalar &  y,
const Scalar &  z
)
inline

Constructs and initializes the quaternion $ w+xi+yj+zk $ from its four coefficients w, x, y and z.

Warning
Note the order of the arguments: the real w coefficient first, while internally the coefficients are stored in the following order: [x, y, z, w]

◆ Quaternion() [3/7]

template<typename _Scalar , int _Options>
EIGEN_DEVICE_FUNC Eigen::Quaternion< _Scalar, _Options >::Quaternion ( const Scalar *  data)
inlineexplicit

Constructs and initialize a quaternion from the array data

◆ Quaternion() [4/7]

template<typename _Scalar , int _Options>
template<class Derived >
EIGEN_DEVICE_FUNC EIGEN_STRONG_INLINE Eigen::Quaternion< _Scalar, _Options >::Quaternion ( const QuaternionBase< Derived > &  other)
inline

Copy constructor

◆ Quaternion() [5/7]

template<typename _Scalar , int _Options>
EIGEN_DEVICE_FUNC Eigen::Quaternion< _Scalar, _Options >::Quaternion ( const AngleAxisType &  aa)
inlineexplicit

Constructs and initializes a quaternion from the angle-axis aa

◆ Quaternion() [6/7]

template<typename _Scalar , int _Options>
template<typename Derived >
EIGEN_DEVICE_FUNC Eigen::Quaternion< _Scalar, _Options >::Quaternion ( const MatrixBase< Derived > &  other)
inlineexplicit

Constructs and initializes a quaternion from either:

  • a rotation matrix expression,
  • a 4D vector expression representing quaternion coefficients.

◆ Quaternion() [7/7]

template<typename _Scalar , int _Options>
template<typename OtherScalar , int OtherOptions>
EIGEN_DEVICE_FUNC Eigen::Quaternion< _Scalar, _Options >::Quaternion ( const Quaternion< OtherScalar, OtherOptions > &  other)
inlineexplicit

Explicit copy constructor with scalar conversion

Member Function Documentation

◆ _check_template_params()

template<typename _Scalar , int _Options>
static EIGEN_STRONG_INLINE void Eigen::Quaternion< _Scalar, _Options >::_check_template_params ( )
inlinestaticprotected

◆ coeffs() [1/2]

template<typename _Scalar , int _Options>
EIGEN_DEVICE_FUNC Coefficients & Eigen::Quaternion< _Scalar, _Options >::coeffs ( )
inline

◆ coeffs() [2/2]

template<typename _Scalar , int _Options>
EIGEN_DEVICE_FUNC const Coefficients & Eigen::Quaternion< _Scalar, _Options >::coeffs ( ) const
inline

◆ FromTwoVectors() [1/2]

template<typename _Scalar , int _Options>
template<typename Derived1 , typename Derived2 >
static EIGEN_DEVICE_FUNC Quaternion Eigen::Quaternion< _Scalar, _Options >::FromTwoVectors ( const MatrixBase< Derived1 > &  a,
const MatrixBase< Derived2 > &  b
)
static

◆ FromTwoVectors() [2/2]

template<typename _Scalar , int _Options>
template<typename Derived1 , typename Derived2 >
EIGEN_DEVICE_FUNC Quaternion< Scalar, Options > Eigen::Quaternion< _Scalar, _Options >::FromTwoVectors ( const MatrixBase< Derived1 > &  a,
const MatrixBase< Derived2 > &  b
)

Returns a quaternion representing a rotation between the two arbitrary vectors a and b. In other words, the built rotation represent a rotation sending the line of direction a to the line of direction b, both lines passing through the origin.

Returns
resulting quaternion

Note that the two input vectors do not have to be normalized, and do not need to have the same norm.

◆ UnitRandom()

template<typename Scalar , int Options>
EIGEN_DEVICE_FUNC Quaternion< Scalar, Options > Eigen::Quaternion< Scalar, Options >::UnitRandom ( )
static
Returns
a random unit quaternion following a uniform distribution law on SO(3)
Note
The implementation is based on http://planning.cs.uiuc.edu/node198.html

Member Data Documentation

◆ m_coeffs

template<typename _Scalar , int _Options>
Coefficients Eigen::Quaternion< _Scalar, _Options >::m_coeffs
protected
The documentation for this class was generated from the following files:
